BIG Block – Contractor and Engineer Details
As every engineer knows, designing a wall involves more than just calculating the number of courses and amount of geogrid needed. LondonBoulders fully engineered BIG Block walls system provides you with unmatched flexibility without breaking the bank.
Download the BIG Block Engineering & Installation Guide. In this guide you’ll find a variety of documents including design details, estimating worksheets, geogrid reinforcement charts, connection capacity formulas and everything you need to build with LondonBoulder. Contact us and we’ll send you our BIG Block Engineered Binder
LondonBoulder Block Specs
Full Boulder
48″ x 18″ x 42″
Weight: 2160 lbs.
Sq. Ft. / Block: 6 sq. ft.

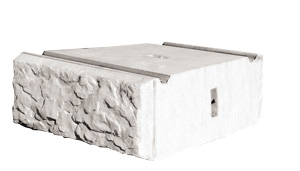

52″ Full Boulder
48″ x 18″ x 52″
Weight: 2,725 lbs.
Sq. Ft. / Block: 6 sq. ft.

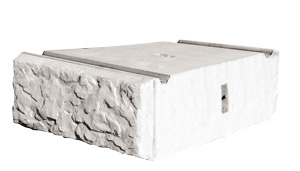

60″ Full Boulder
48″ x 18″ x 60″
Weight: 3,150 lbs.
Sq. Ft. / Block: 6 sq. ft.
28″ Full Boulder
48″ x 18″ x 28″
Weight: 1396 lbs.
Sq. Ft. / Block: 6 sq. ft.ft.

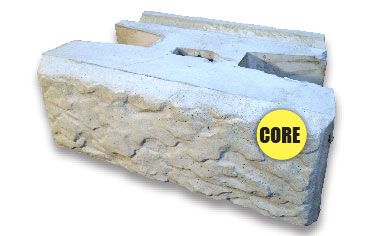

28″ Core Boulder
48″ x 18″ x 28″
Weight: 1290 lbs.
Sq. Ft. / Block: 6 sq. ft.
1/2 Corner Boulder
24″ x 18″ x 42″ (16″)
Weight: 900 lbs.
Sq. Ft. / Block: 3 sq. ft.
Cap Boulder
48″ x 18″ x 42″ (32″)
Weight: 1425 lbs.
Sq. Ft. / Block: 6 sq. ft.
90° Return Boulder
48″ x 18″ x 24″
Weight: 1650 lbs.
6″ Cap Block
6″ x 40″ x 34″
Weight: 740 lbs.
Left Cap Corner
L – 24″ x 18″ x 34
R – 16″ x 18″ x 34
Weight: 1850 lbs.
Right Corner Cap
L – 16″ x 18″ x 34
R – 24″ x 18″ x 34
Weight: 1850 lbs.
LondonBoulder Face Textures
FieldStone Face
The Fieldstone is our latest in the line-up of face textures. Designed to blend into your environment.
LimeStone Face
Limestone is our most popular face style in our line up.
CobbleStone Face
The Cobblestone is the elegant and bold looking big block. Example above shown stained.
